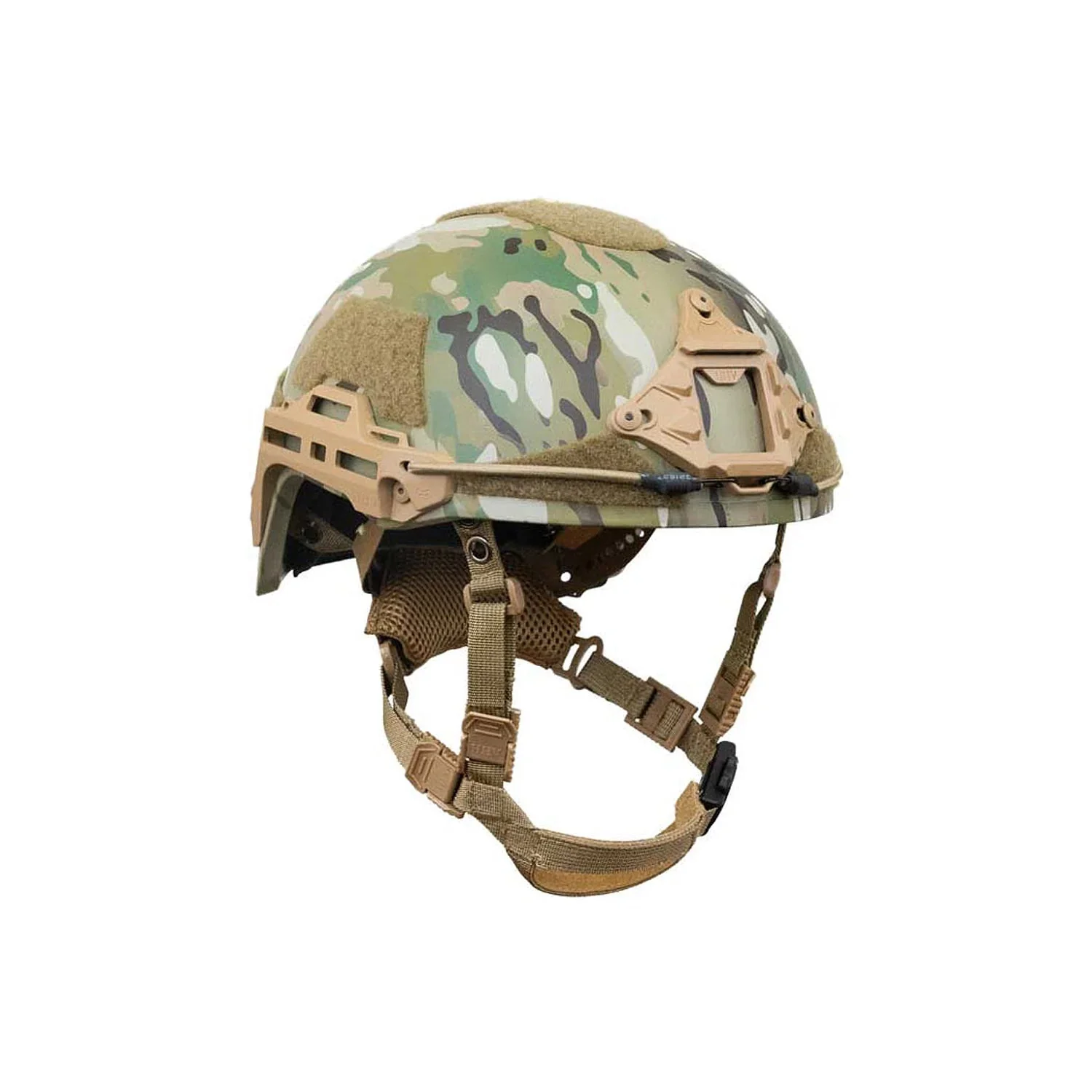

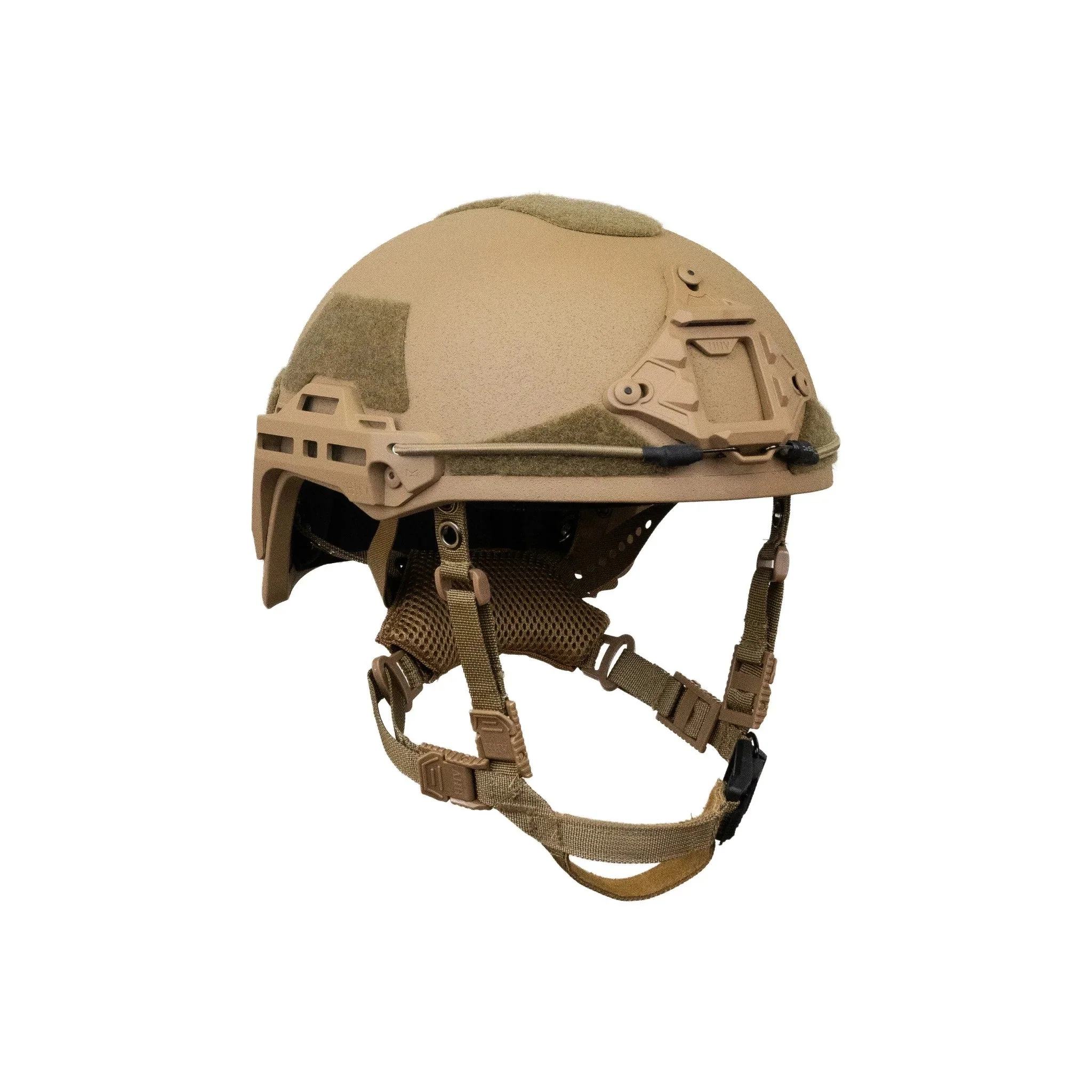

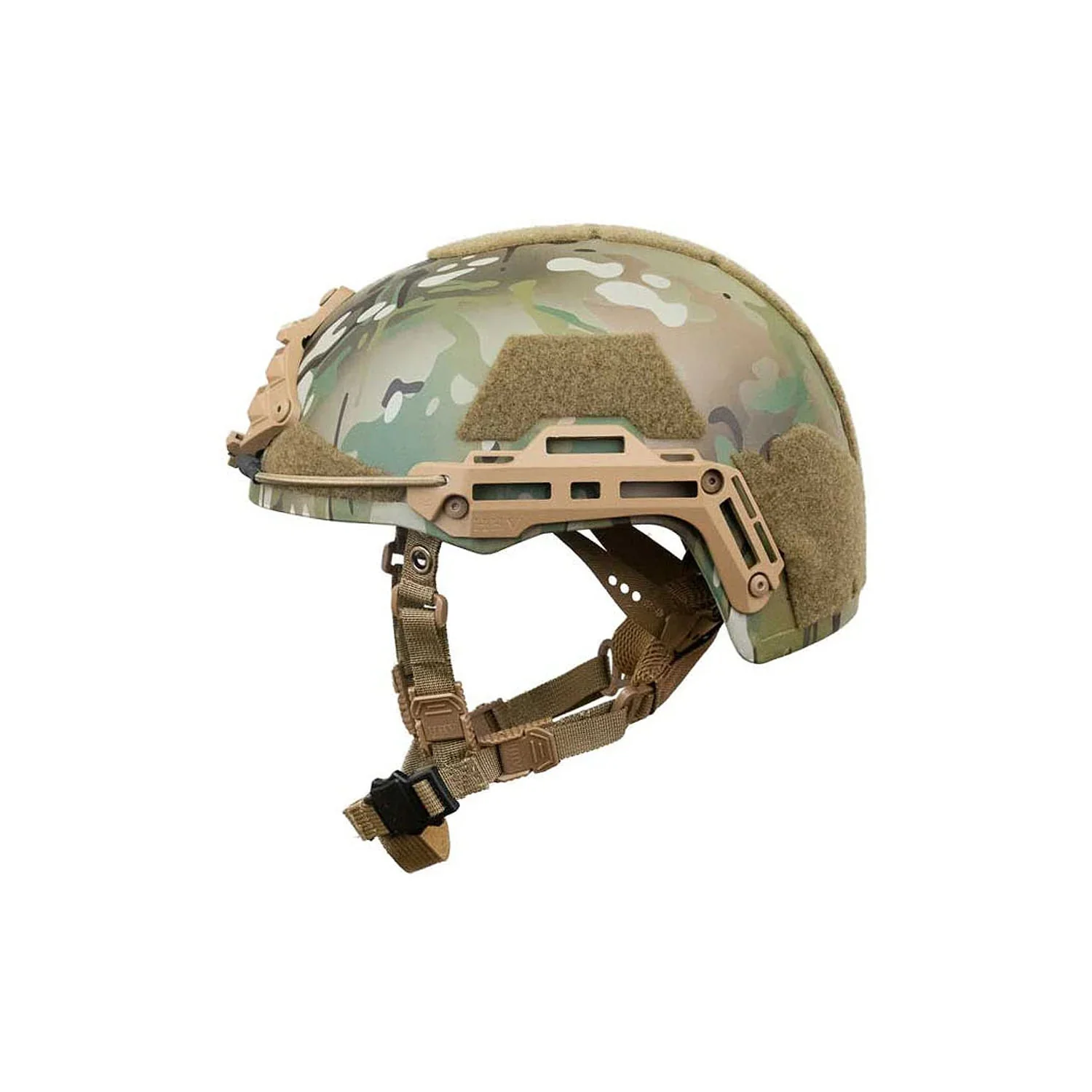

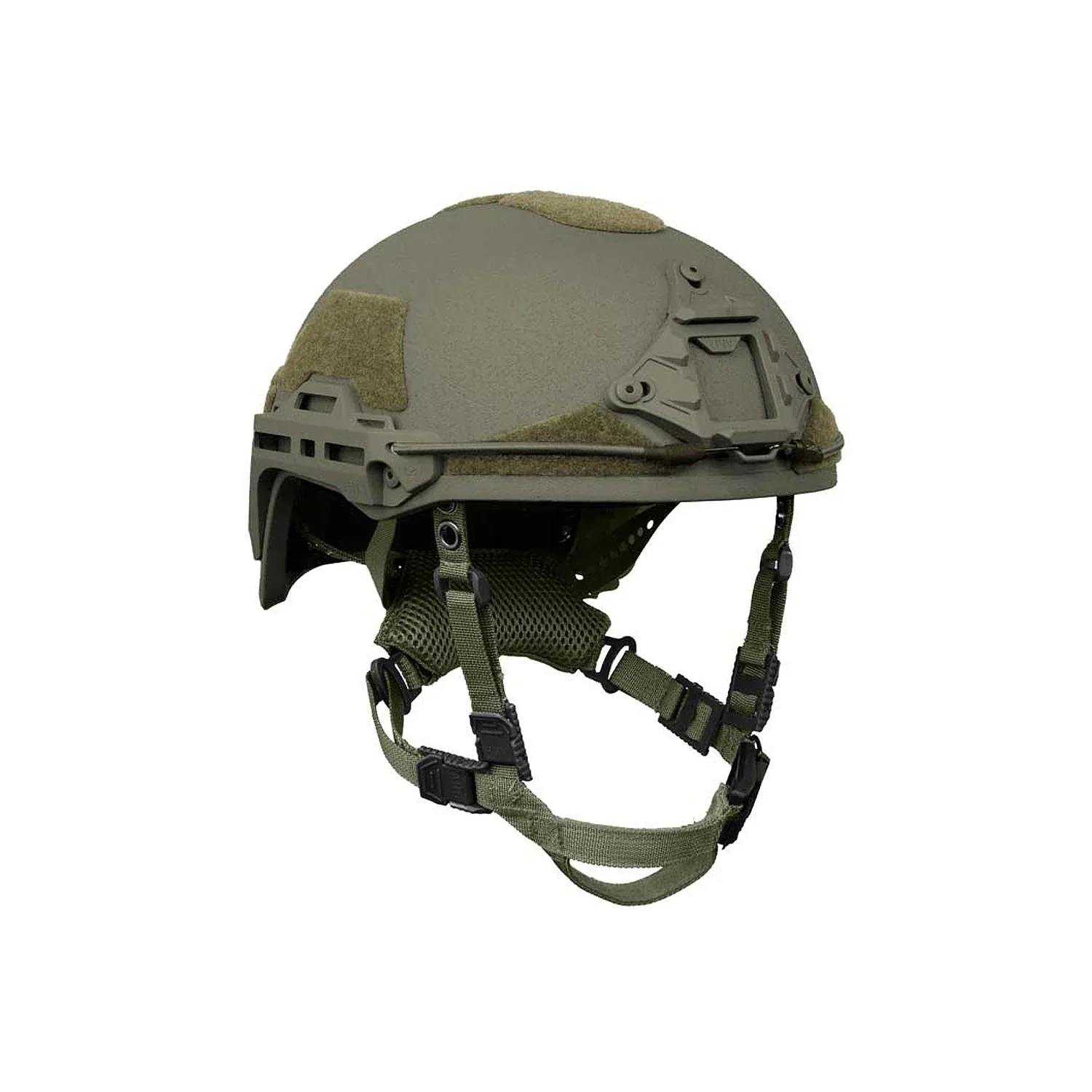

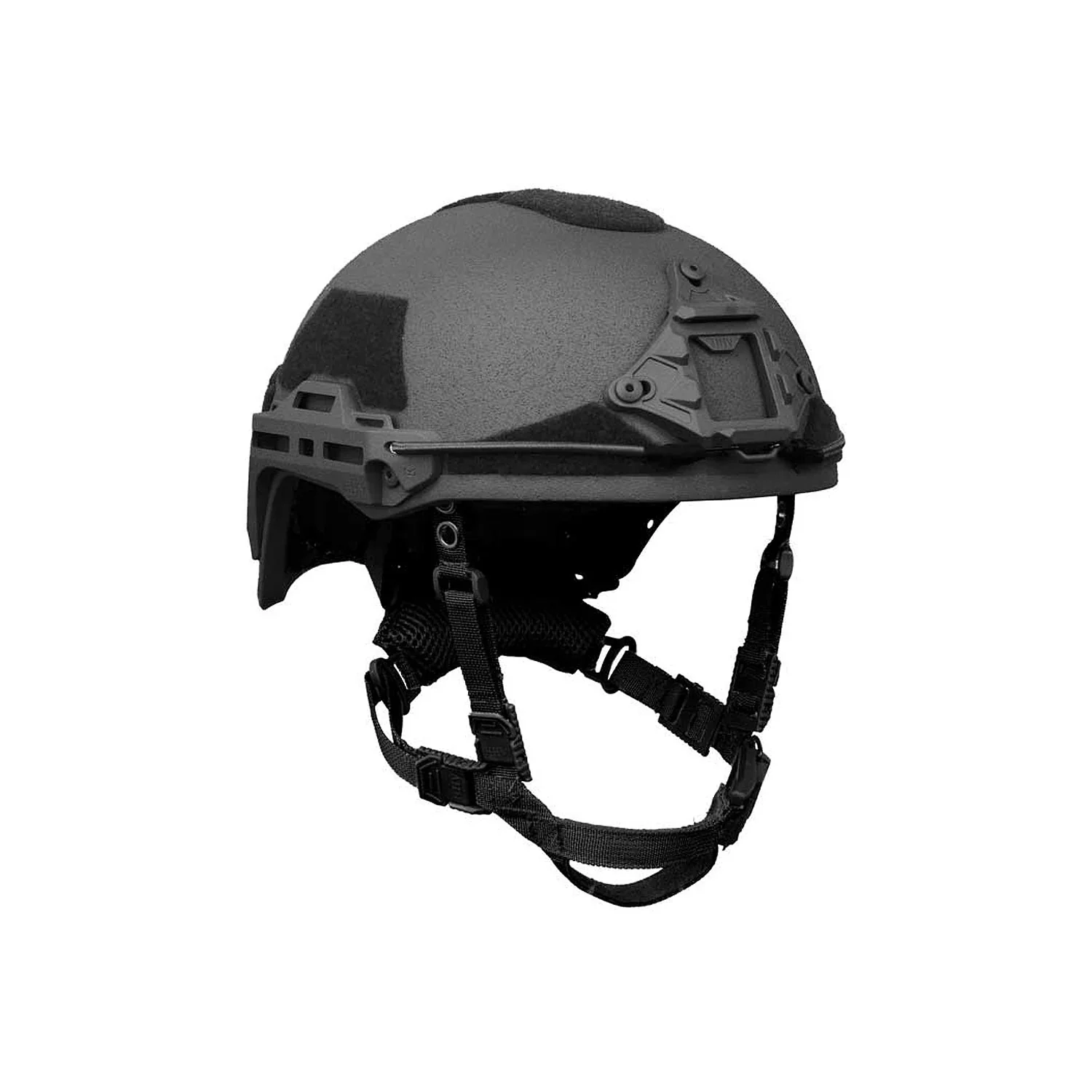

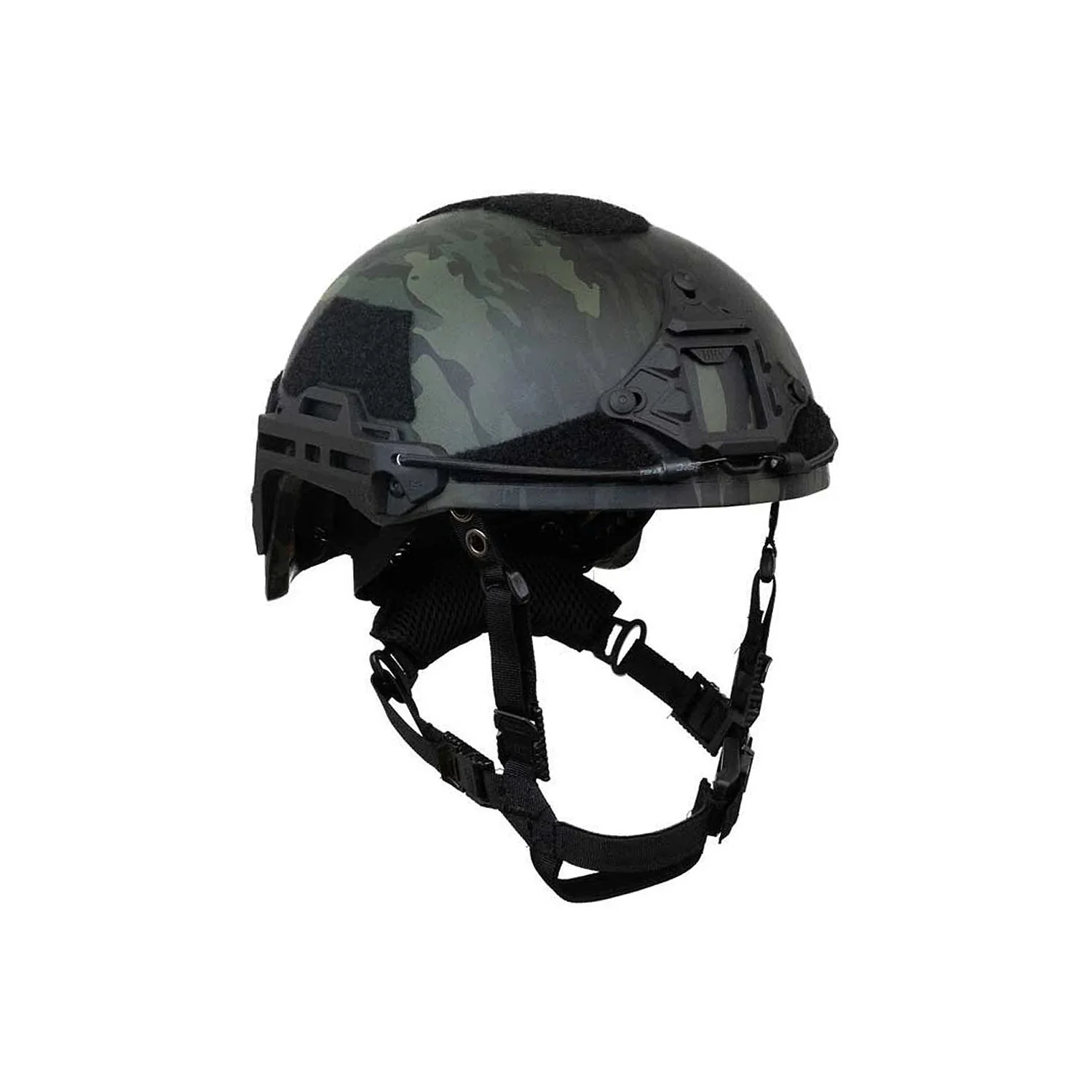

Ballistic Helmet NIJ Level IIIA with Above The Ear (ATE) or high cut design. The HHV ATE® GEN2 Ballistic Helmet offers the ideal ballistic helmets for Law Enforcement, Military, and Private Security Contractors. The ATE® GEN 2 Ballistic Helmet shell is pressed with with ballistic fibers from Dupont® (USA) or Teijin® (Netherlands), in China. Providing best in class protection at an affordable price. HHV's high-cut helmet offers significant weight savings, with the ATE® weighing in at 3.00 lbs.

HELMET SIZE (Circumference)

• Small < 20 1/4”
• Medium 20 1/4” – 23 1/2”
• Large 23 1/2” – 24 3/4”
• XL > 24 3/4”

WHAT'S INCLUDED

• Above The Ear (ATE) high-cut helmet shell made of next-generation aramid fibers

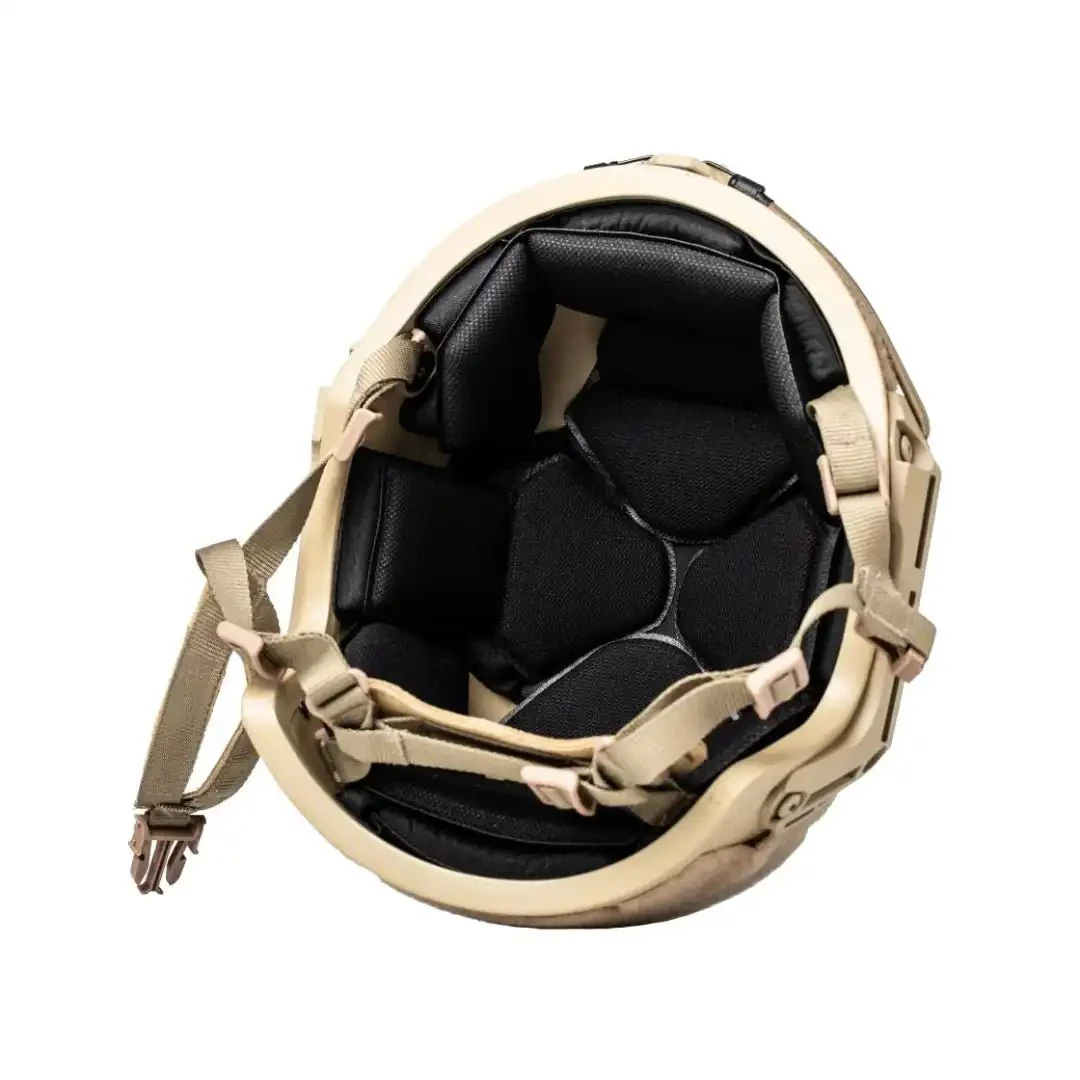

• Initial Impact Padding System. Base Impact layer plus 2 sizes of comfort pads to be layered as needed for a 100% custom fit.

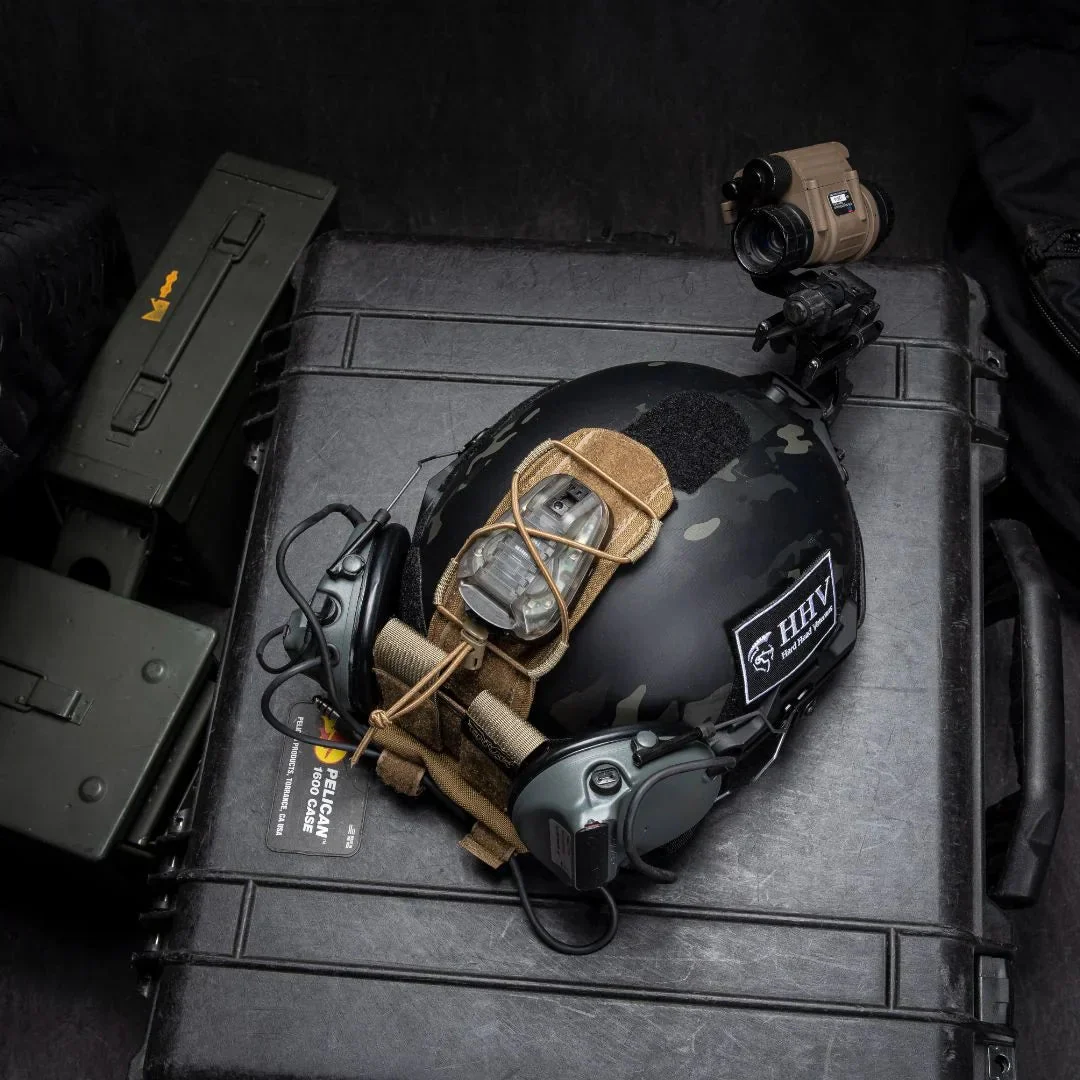

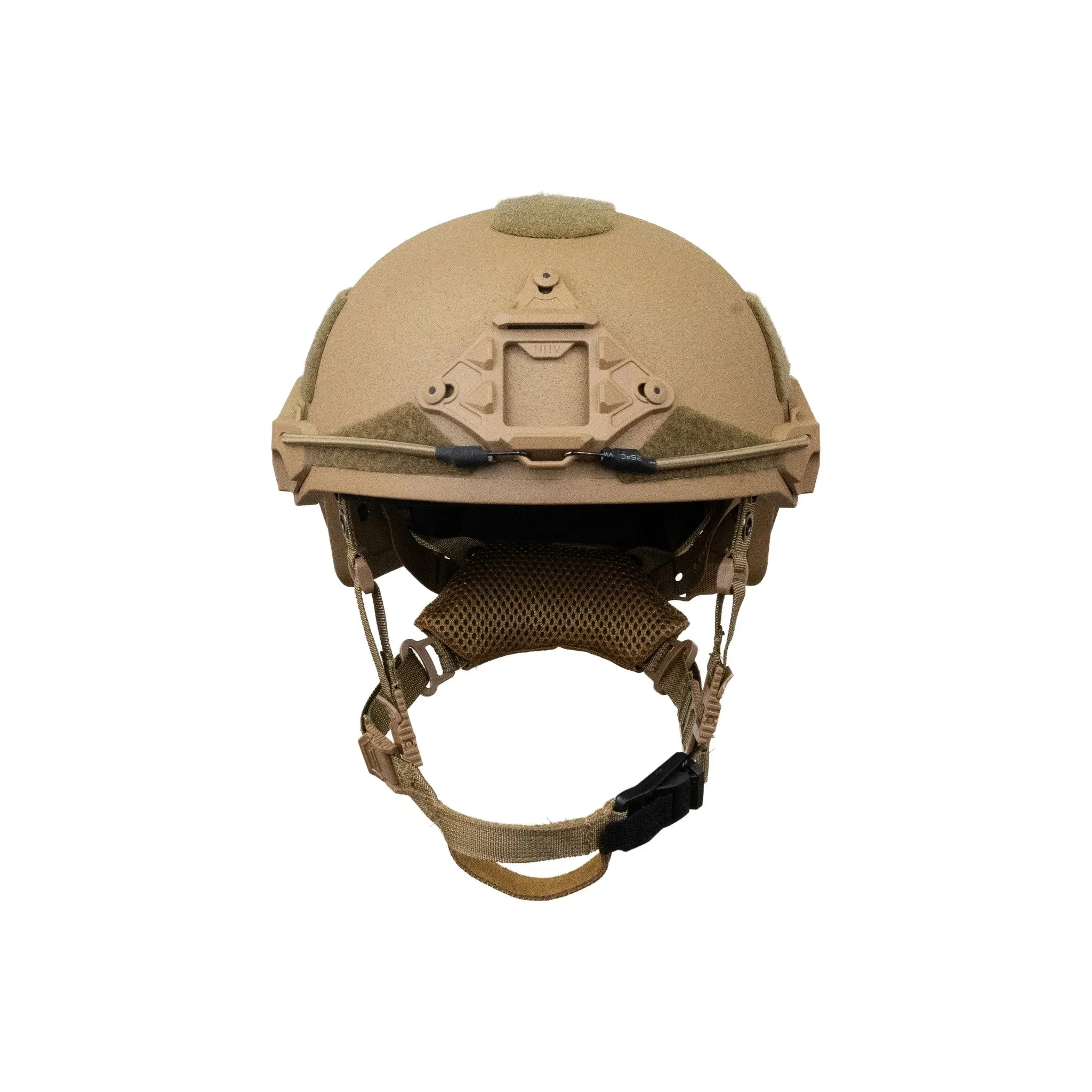

• A3S Lite Shroud (Adaptive 3-Hole Shroud) compatible with standardized NVG mounts from Wilcox to Norotos.
• Quick Attach/Detach Magnetic Fidlock Suspension System with tightening ratchet. Allows for easy adjustment and single handed, gloved operation.
• Module design for mission specific scalability with numerous HHV and 3rd party accessories. Rifle Rated Up-Armor, Picatinny Rails, Communications Rail Adapter Kits, Tactical and Ballistic Face Shields, Alternate padding and suspension kits.

PERFORMANCE & SPECS

• NIJ Level IIIA (9mm FMJ ⁄ 44mag) Threats
• 17gr FSP Fragmentation Protection: V-50 rating of 2,250 ft's
• AR/PD 10-02 Rev. A (avg 83.0 G) Blunt Impact Performance
• BFD: 9mm @1400 ft/s 15mm (Crown) , 13.3mm (Sides), 14.8mm (Front), and 8.5mm (Rear); Additional BFD Testing .40 S&W; 5.2mm and 12.5mm. .45 Auto 11.1mm and 17.6mm
• Compression & Environmental Testing: Ambient, Cold -60° F, Hot +160° F. Dry & Wet.

SIZE, COVERAGE, WEIGHT

• Small 154.55 in² / 2.81 lbs (1.28 kg)
• Medium 163.35 in² / 2.99 lbs (1.36 kg)
• Large 170.74 in² / 3.14 lbs (1.38 kg)
• XL 183.23 in² / 3.21 lbs (1.46 kg)

PROPER FIT

Start by wrapping a measuring tape around the circumference of your head, just above your ears and eyebrows. Where the tape overlaps is your measurement. No measuring tape? No problem! Use a piece of string to mark the overlap, then measure the string.
Use the size chart to find where your optimal tactical helmet size should be.

• Small < 20 1/4”
• Medium 20 1/4” – 23 1/2”
• Large 23 1/2” – 24 3/4”
• Extra Large > 24 3/4”

WARRANTY

• Lifetime Warranty on Hard Components
• 10-Year Warranty on Shell Performance
• 1-Year Warranty on Soft Component

BATTLE SCARS WARRANTY

HHV will replace your helmet if an HHV product has saved your life.

Please note that HHV's warranty does not cover normal wear and tear, misuse, abuse, or improper storage of your ballistic helmet.

SHIPPING & RETURNS

Exchanges & Returns: Be sure to inspect your new helmet carefully when you receive it — if you notice any defects or are dissatisfied with it for any reason, send it back to us within 30 days for a hassle-free exchange or refund.
