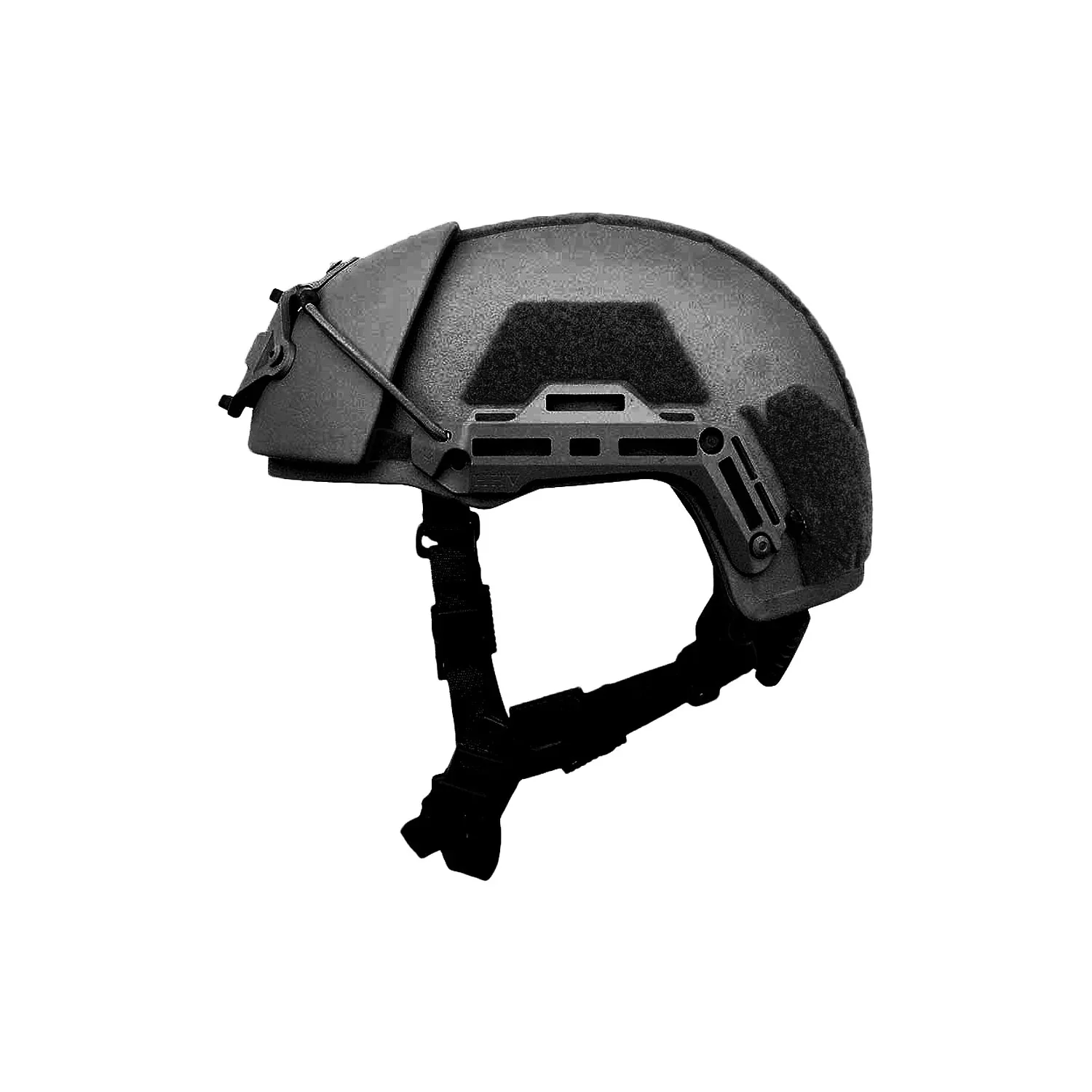

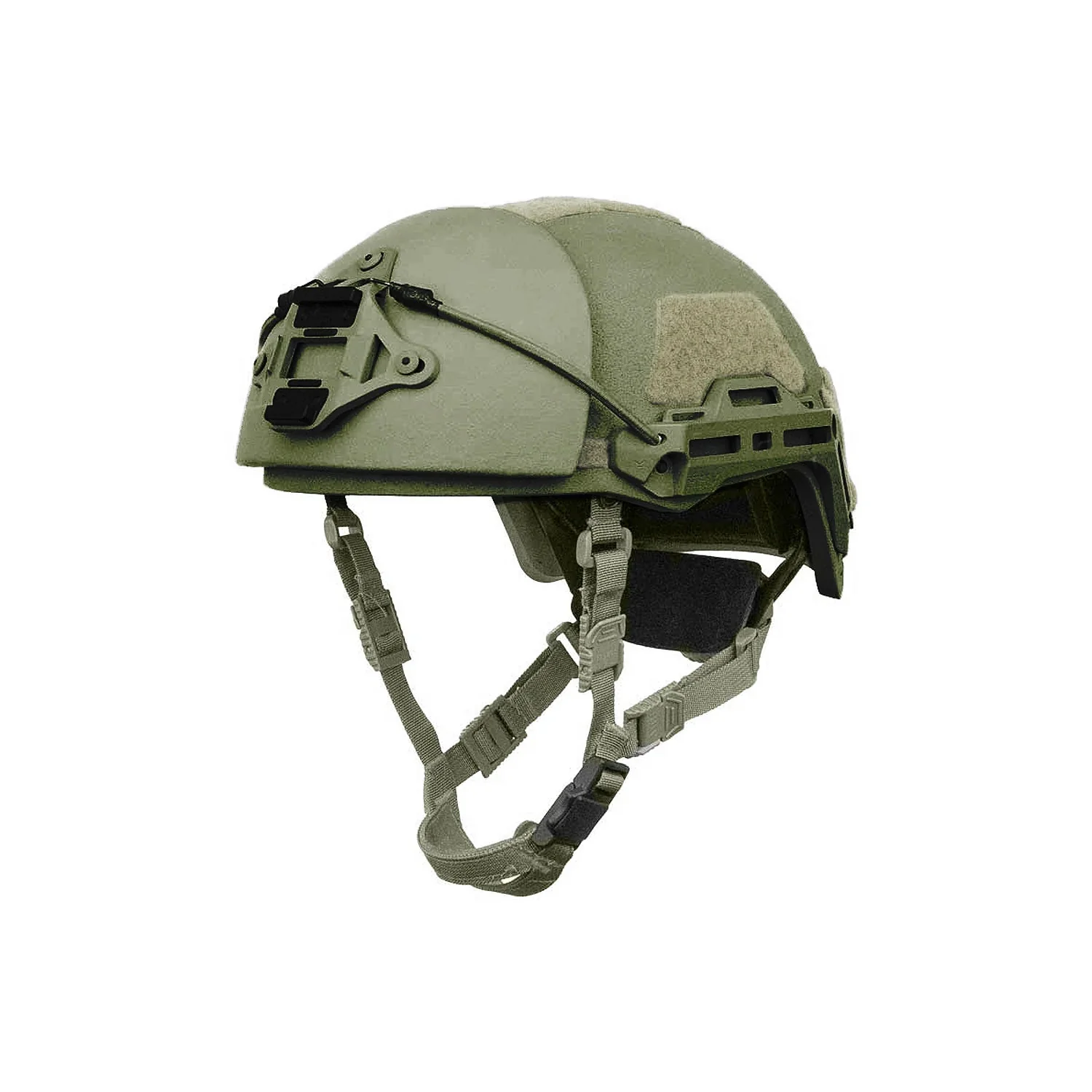

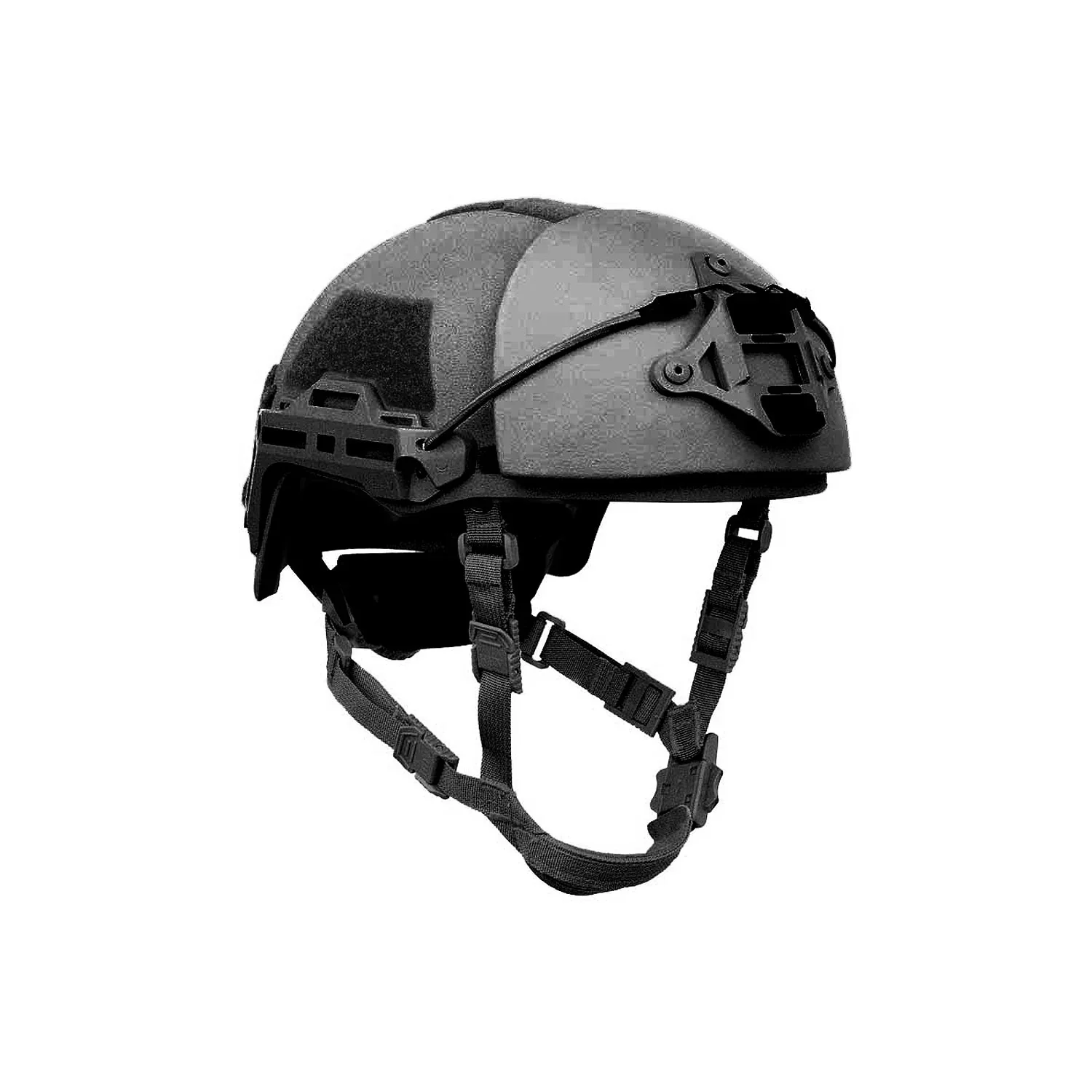

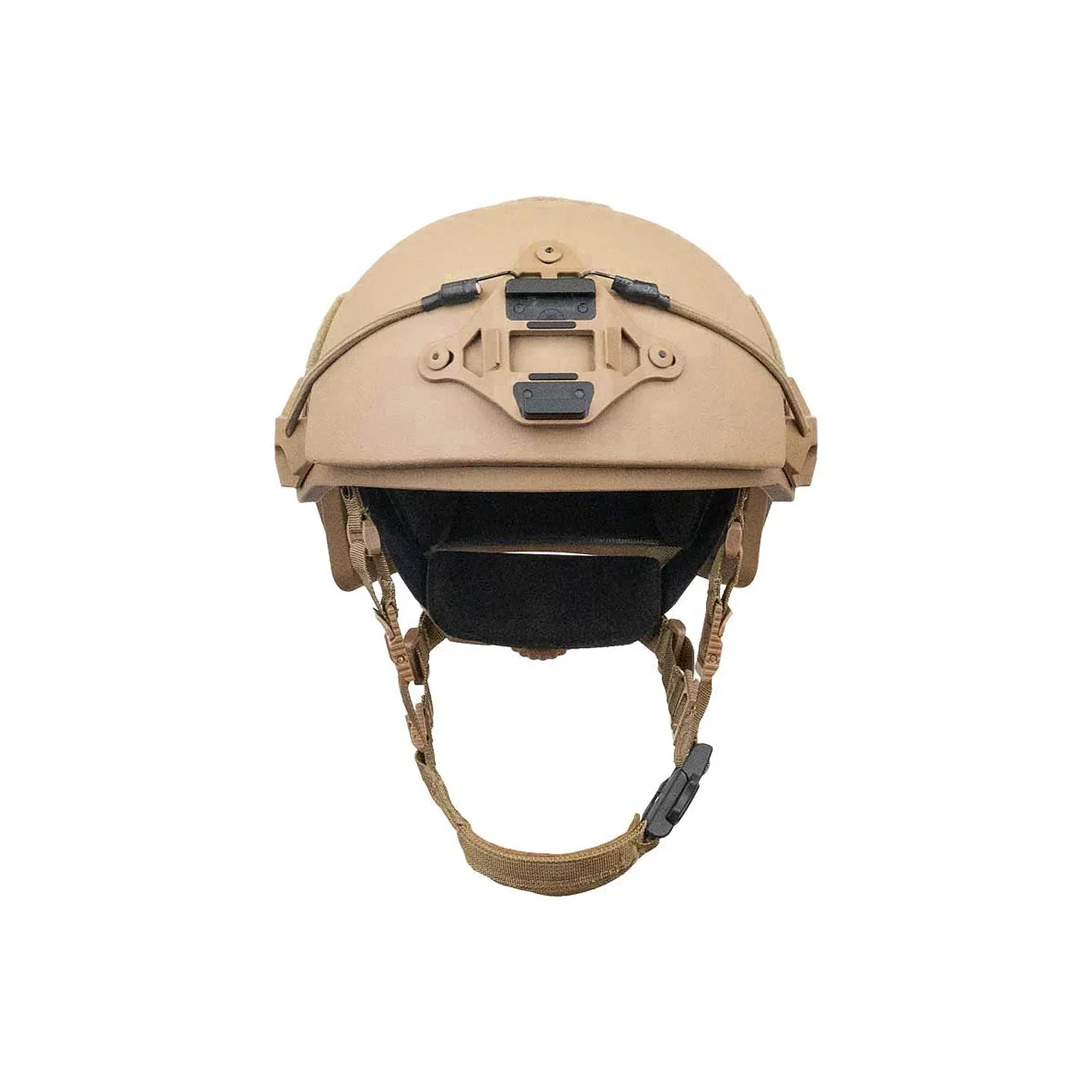

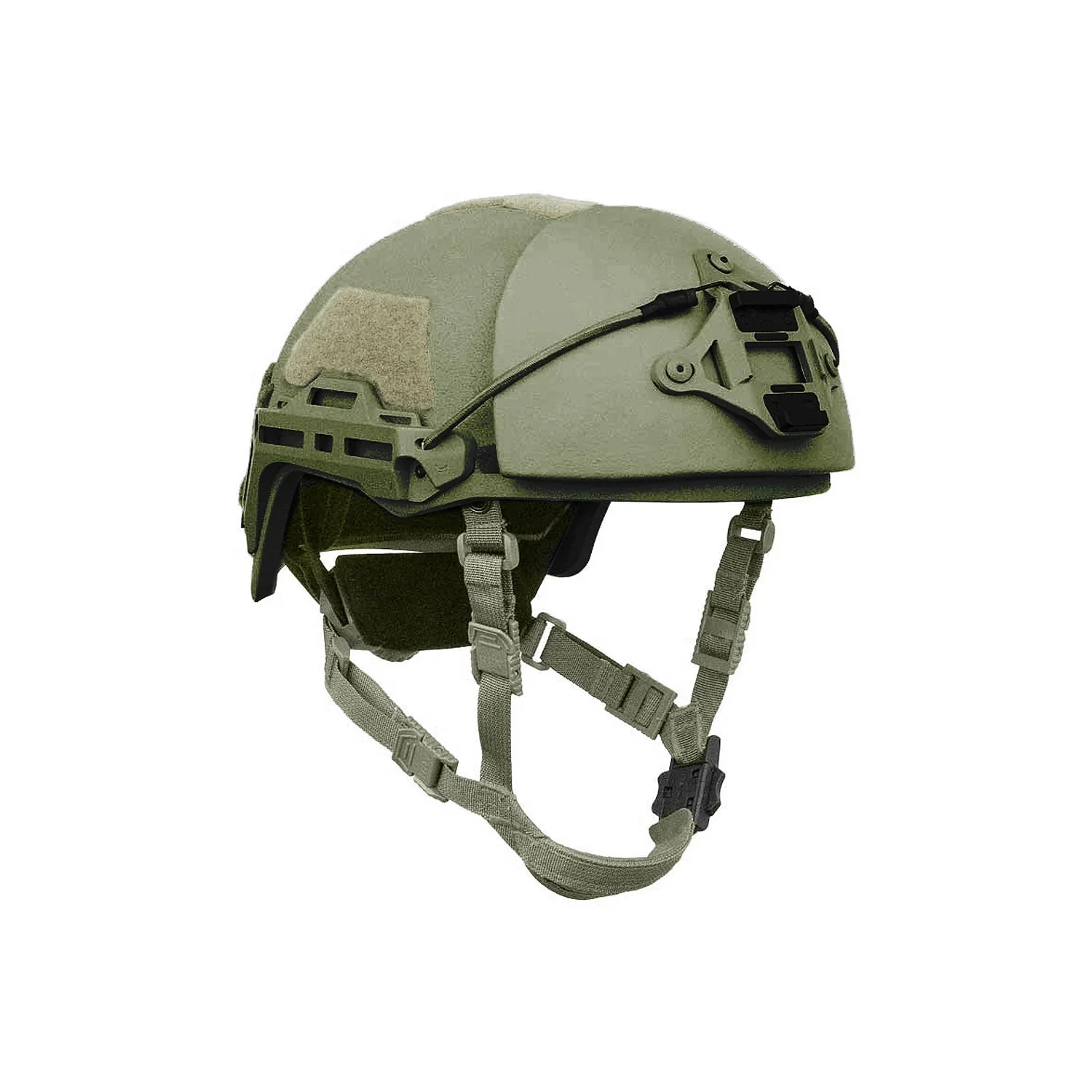

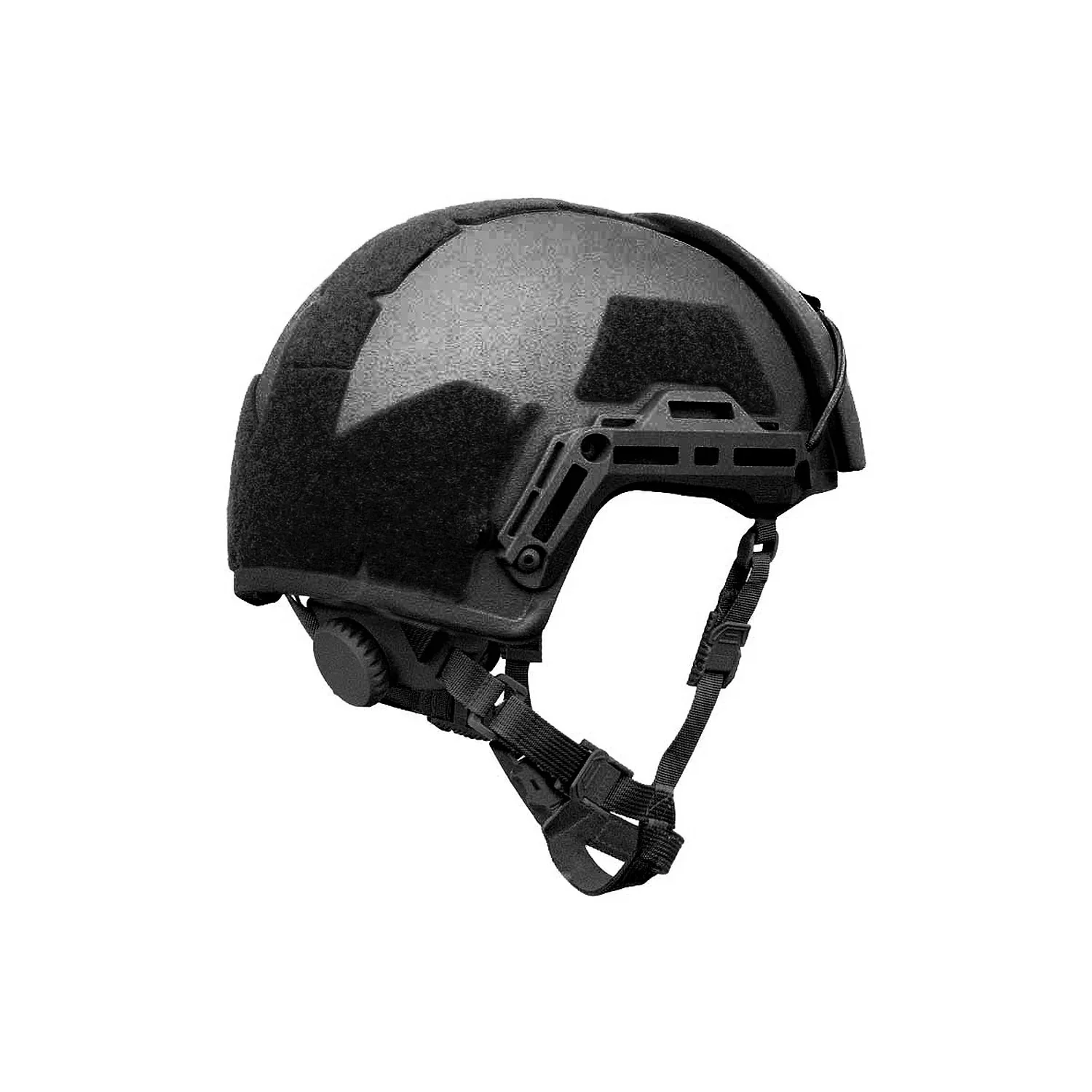

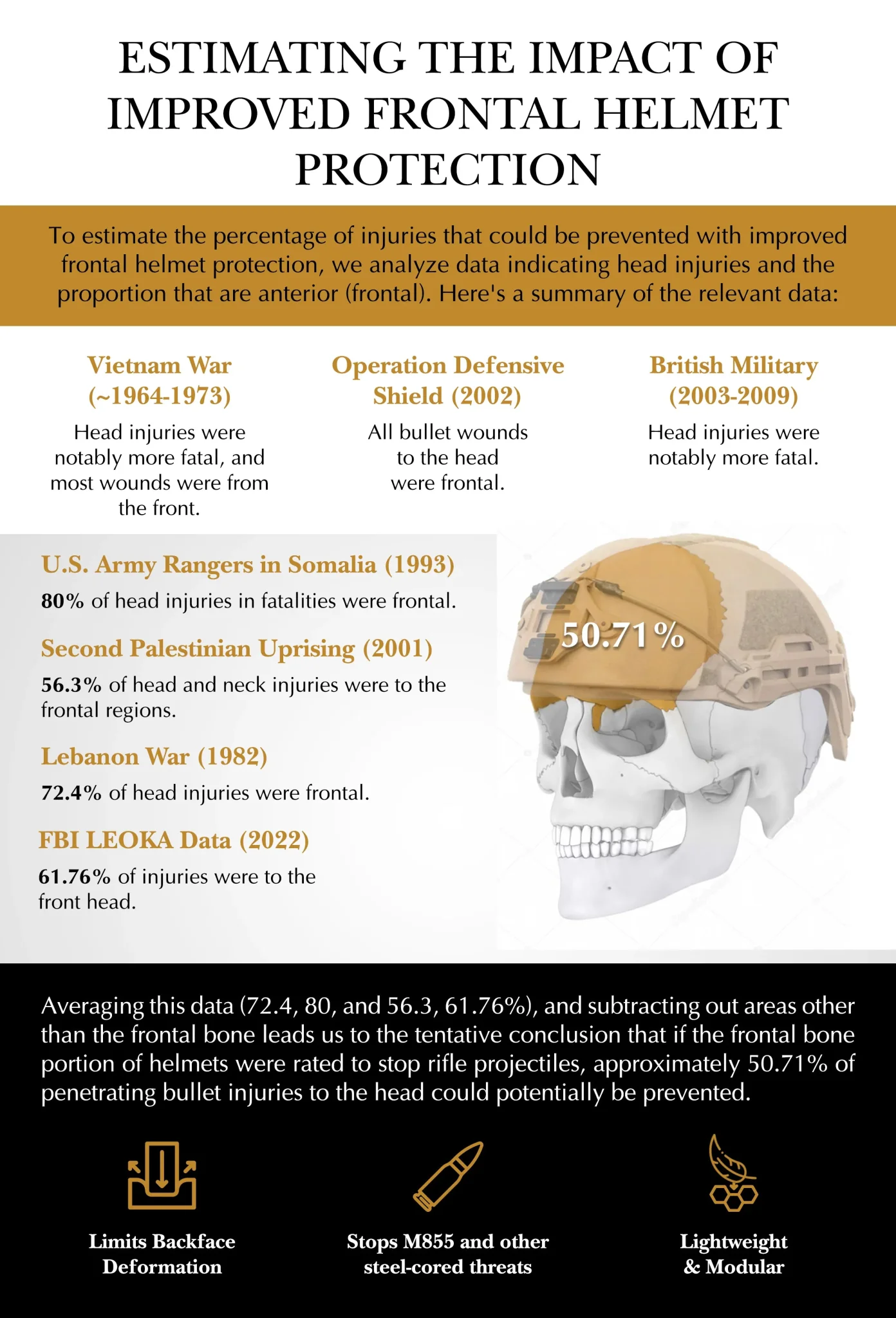

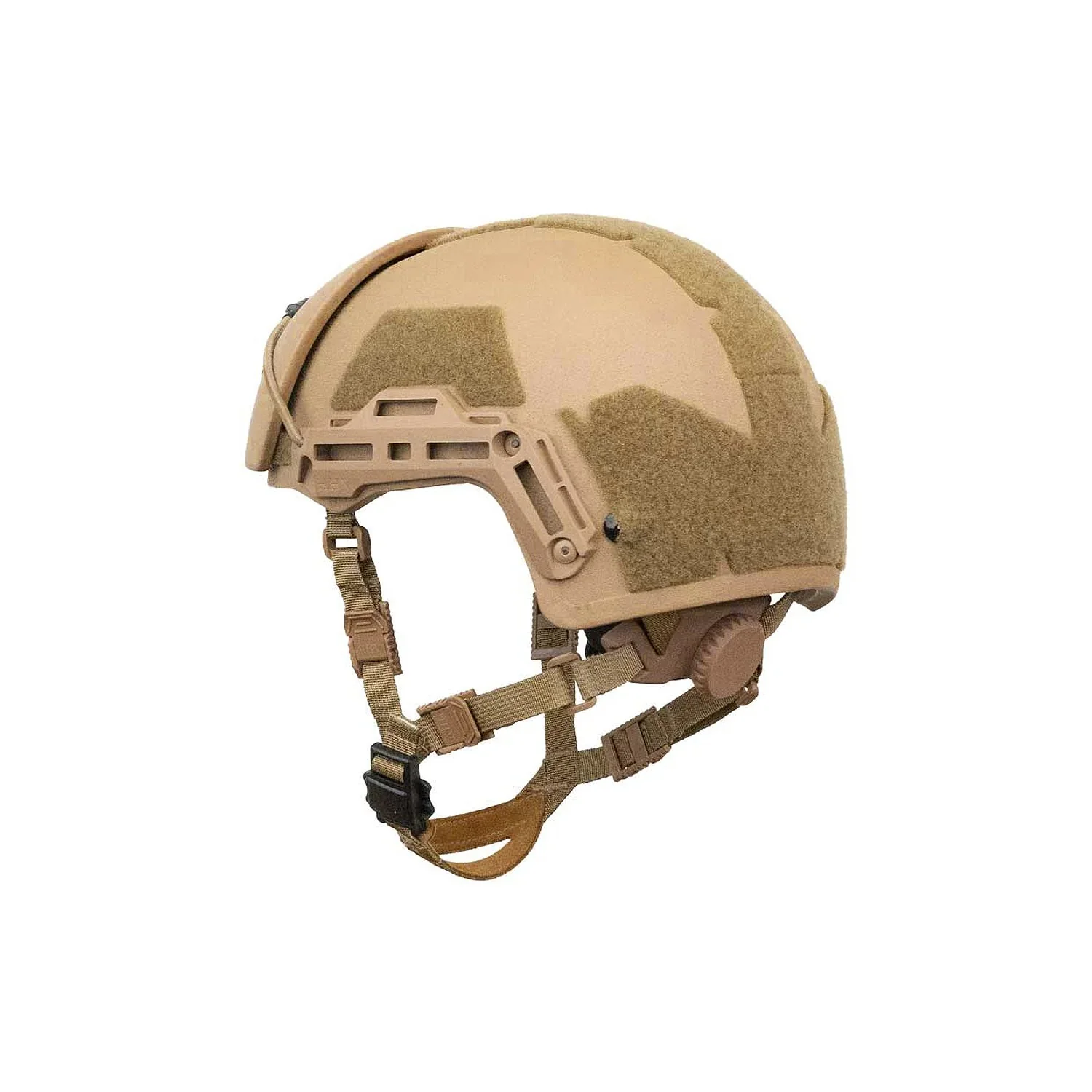

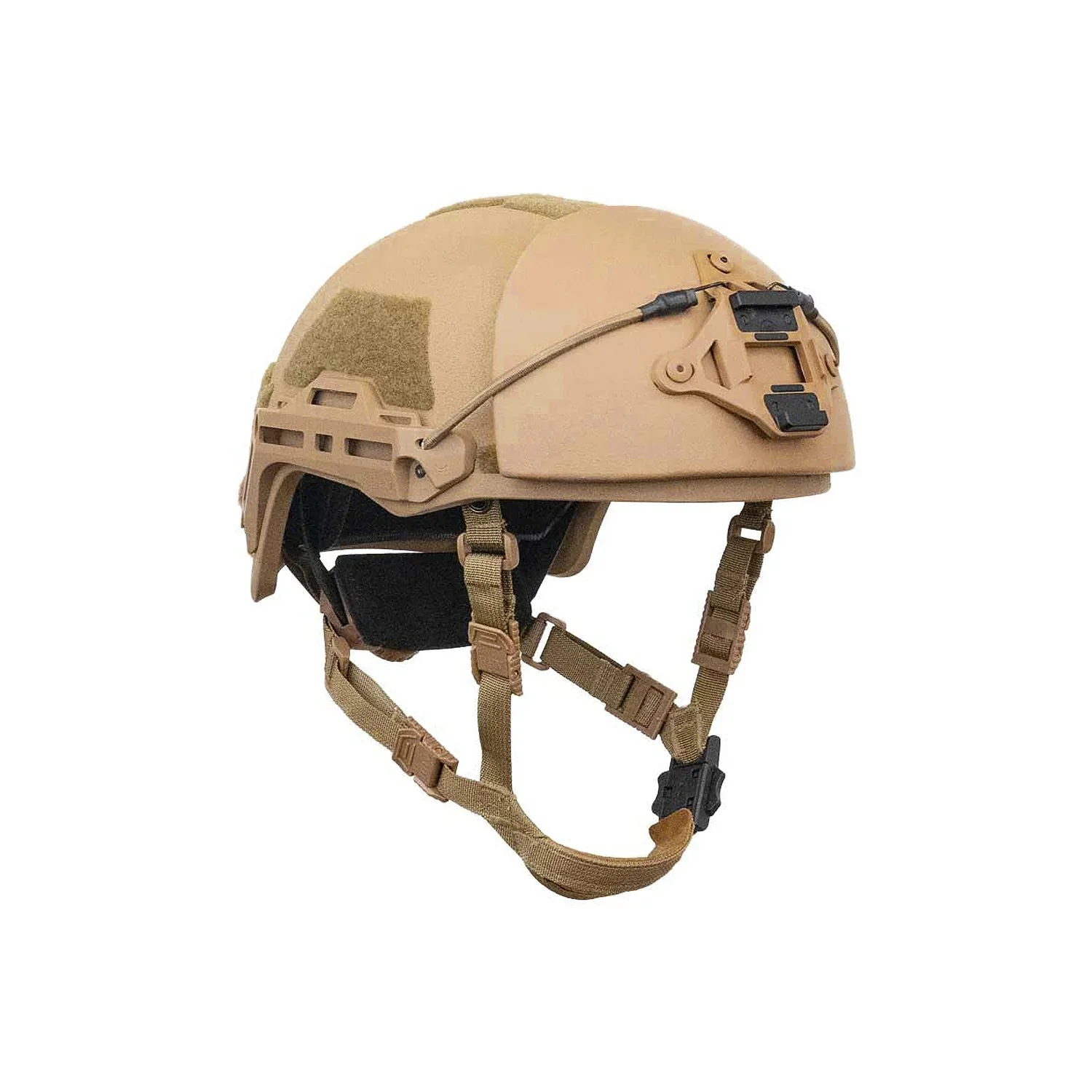

The HHV ATE® Rifle, proudly made in Sweetwater, Texas, is the only rifle rated helmet that not only stops rifle threats (including 5.56 M855 Green Tip), but keeps backface deformation to an acceptable level. Combat and police casualty data show that prioritizing frontal skull protection in helmets can dramatically reduce fatalities by up to 50%. The helmet shell (1.6lbs) is made up of UHMWPE and aramid fibers, while the up-armor is made of Silicon Carbide. The helmet utilizes our Micro Lattice Pads to maximize comfort and further decrease backface deformation.

HELMET SIZE (Circumference)

• Small < 20 1/4”
• Medium 20 1/4” – 23 1/2”
• Large 23 1/2” – 24 3/4”
• Extra Large > 24 3/4”

WHAT'S INCLUDED

• Above The Ear (ATE) high cut helmet shell made from UHMWPE and next generation aramid fibers
• Up-Armor Plate made from Silicon Carbide & Polyurea
• Micro Lattice Padding System (Conforms naturally to the users head while providing airflow and increased protection from blunt and ballistic impacts)
• A3S Lite Shroud (only 32 grams) compatible with standardized NVG mounts from Wilcox to Norotos, M-LOK Tactical Helmet Accessory Rails utilizing the MAGPUL M-LOK® System with integrated hook bungees, and external hook and loop.

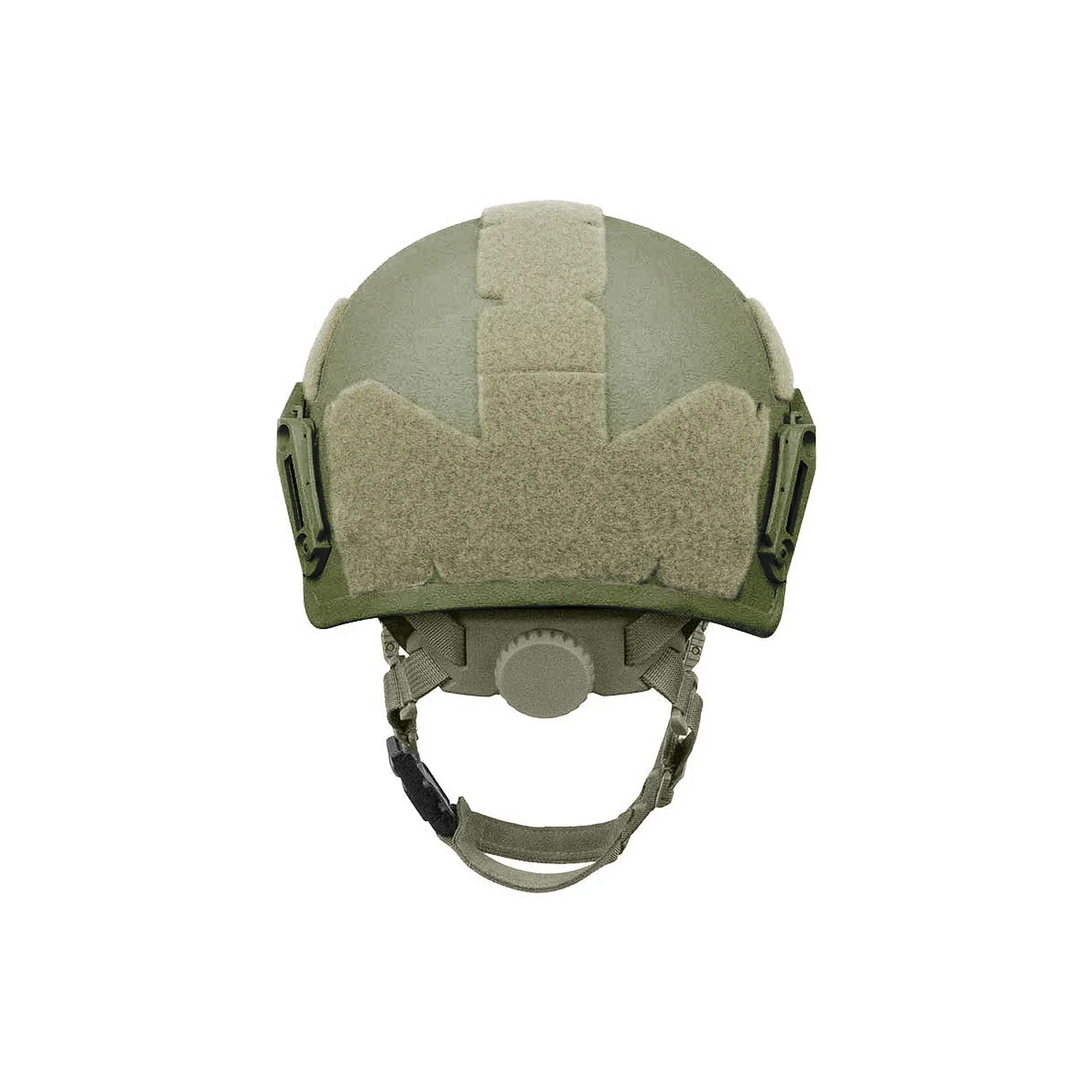

• Quick Attach/Detach Magnetic Fidlock Suspension System with tightening ratchet. Allows for easy adjustment and single handed, gloved operation.
• Modular design for mission specific scalability with numerous HHV and 3rd party accessories. Rifle Rated Up-Armor, Picatinny Rails, Communications Rail Adapter Kits, Tactical and Ballistic Face Shields, Alternate padding and suspension kits.

PERFORMANCE & SPECS

• NIJ Level IIIA (9mm FMJ ⁄ 44mag) Threats - Entire Helmet
• Special Threat Protection: 5.56x45 (M855) & 7.62X39 (Russian MSC) - Up-Armor Area Only
• 17gr FSP Fragmentation Protection: V-50 rating of 2,500 ft's
• AR/PD 10-02 Rev. A (avg 83.0 G) Blunt Impact Performance
• BFD: 9mm @1400 ft/s 6.4mm (Crown) , 14.6mm (Sides), 8.9mm (Front), and 3.2mm (Rear); Additional BFD Testing .40 S&W; 5.5mm and 16.6mm. .45 Auto 14.4mm and 16.5mm; 7.62 X 39 M43 LS 123.7 gr. Russian MSC @ 2452 ft/s 26.8 mm ; 5.56 X 45 M855 62 gr @ 3162 ft/s 14.4 mm BFD
• Compression & Environmental Testing: Ambient, Cold -60° F, Hot +160° F. Dry & Wet.

SIZE, COVERAGE, WEIGHT

• Small 154.55 in² / 3.20 lbs (1.45 kg)
• Medium 163.35 in² / 3.32 lbs (1.50 kg)
• Large 170.74 in² / 3.37 lbs (1.52 kg)
• XL 183.23 in²/ 3.52 lbs (1.59 kg)

PROPER FIT

Start by wrapping a measuring tape around the circumference of your head, just above your ears and eyebrows. Where the tape overlaps is your measurement. No measuring tape? No problem! Use a piece of string to mark the overlap, then measure the string.
Use the size chart to find where your optimal tactical helmet size should be.

• Small < 20 1/4”
• Medium 20 1/4” – 23 1/2”
• Large 23 1/2” – 24 3/4”
• Extra Large > 24 3/4”

WARRANTY

• Lifetime Warranty on Hard Components
• 10-Year Warranty on Shell Performance
• 1-Year Warranty on Soft Component

BATTLE SCARS WARRANTY

HHV will replace your helmet if an HHV product has saved your life.

Please note that HHV's warranty does not cover normal wear and tear, misuse, abuse, or improper storage of your ballistic helmet.

SHIPPING & RETURNS

Exchanges & Returns: Be sure to inspect your new helmet carefully when you receive it — if you notice any defects or are dissatisfied with it for any reason, send it back to us within 30 days for a hassle-free exchange or refund.
